Beyond boxes and cylinders

Planning around real mold shapes

RotoSpider gives each mold one active shape: Box, Cylinder, L shape, triangle, wedge, tapered cylinder, drawn footprint, or a prepared complex shape.

The Web App builds the L shape, triangle, wedge, tapered cylinder, and drawn footprint from measurements, and opens prepared .rotogeom or .rotoshape files. Converting a STEP file is a job for the Windows desktop; once prepared, the same exact shape is used on Windows, Linux, Mac, and in the browser.

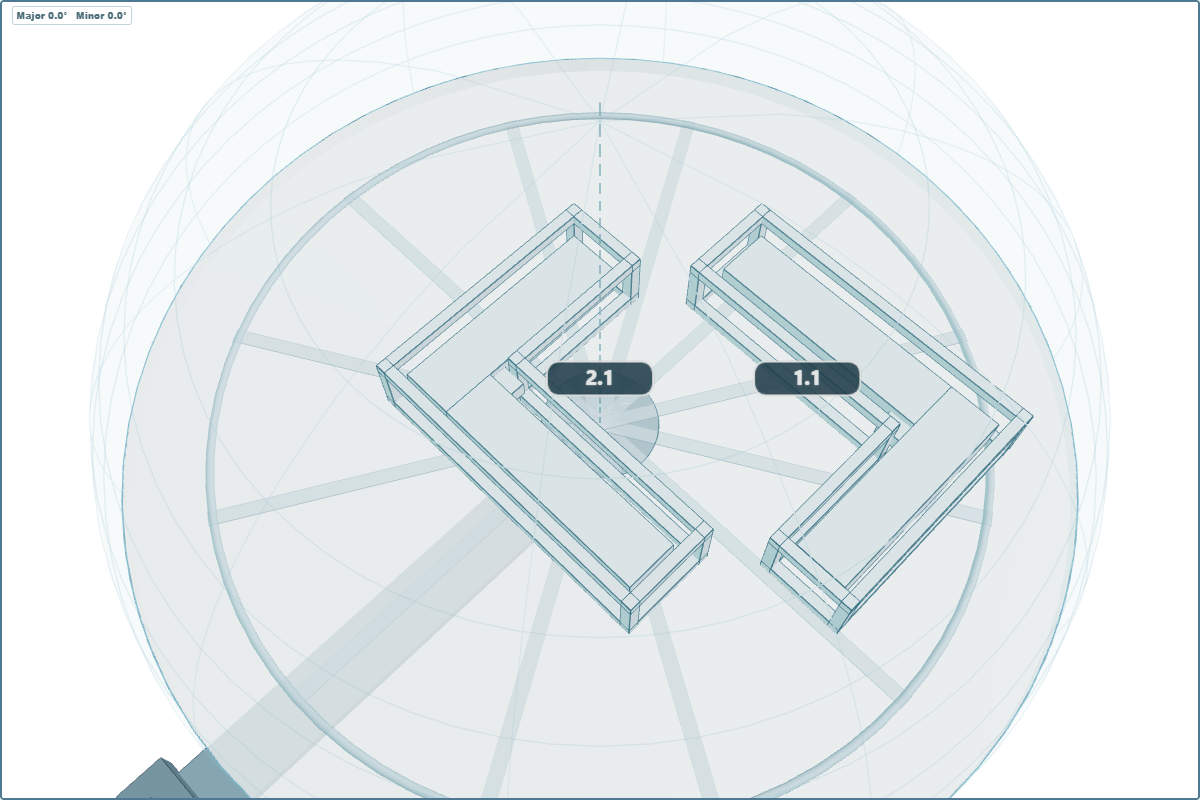

Two L-shaped molds interlocked on matching L-shaped mounting frames
Interlocking L-shaped molds with matching mounting frames.

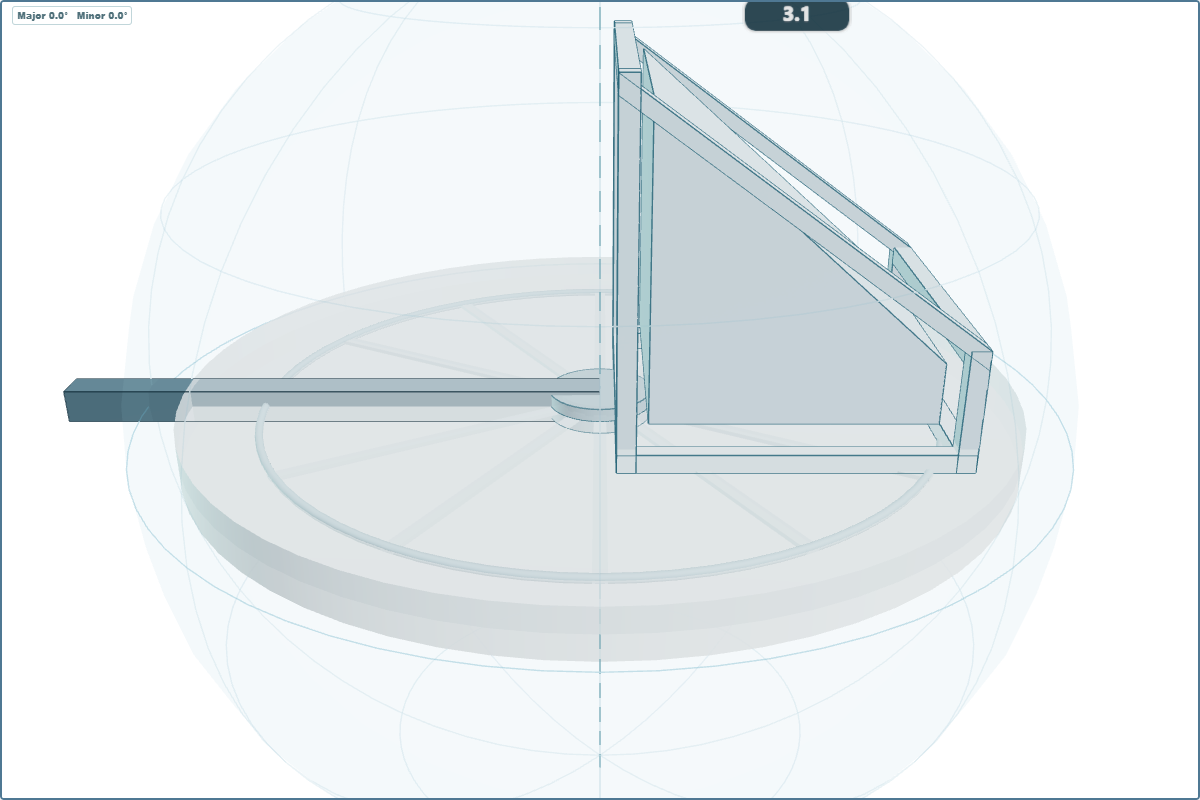

Slope-shaped mold positioned near the spider border and aligned with the spherical envelope
A slope-shaped mold positioned close to the spider border and aligned with its spherical envelope.

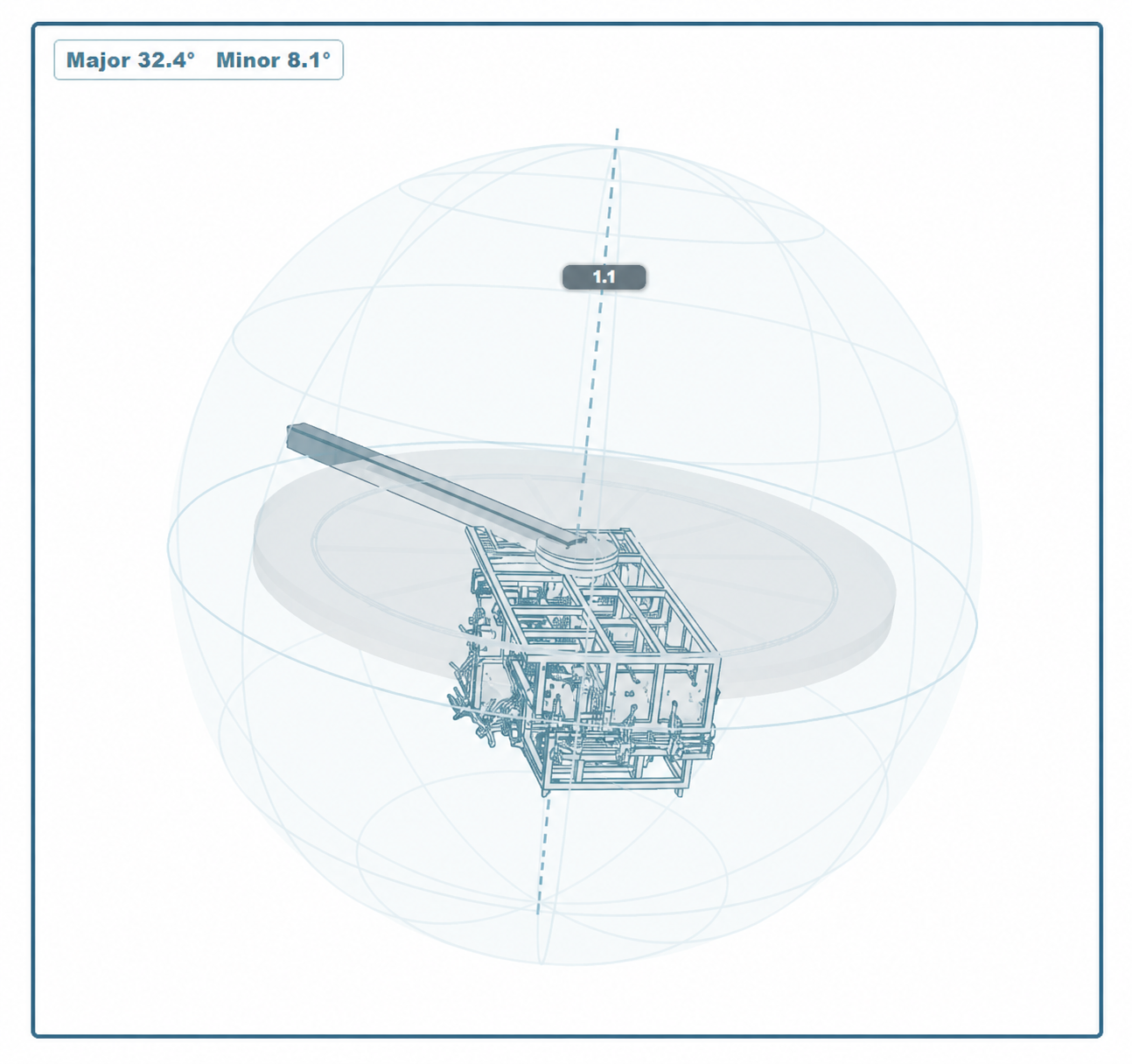

Imported complex open-frame mold mounted on a RotoSpider spider inside the 3D rotation envelope
An anonymized complex CAD shape imported and mounted on the spider.

The Web App shows RotoSpider's core job: laying out molds on a spider. Desktop adds complex-shape import, your own machine and mold data, and saved layout files. Production scheduling is a separate product, RotoScheduler.

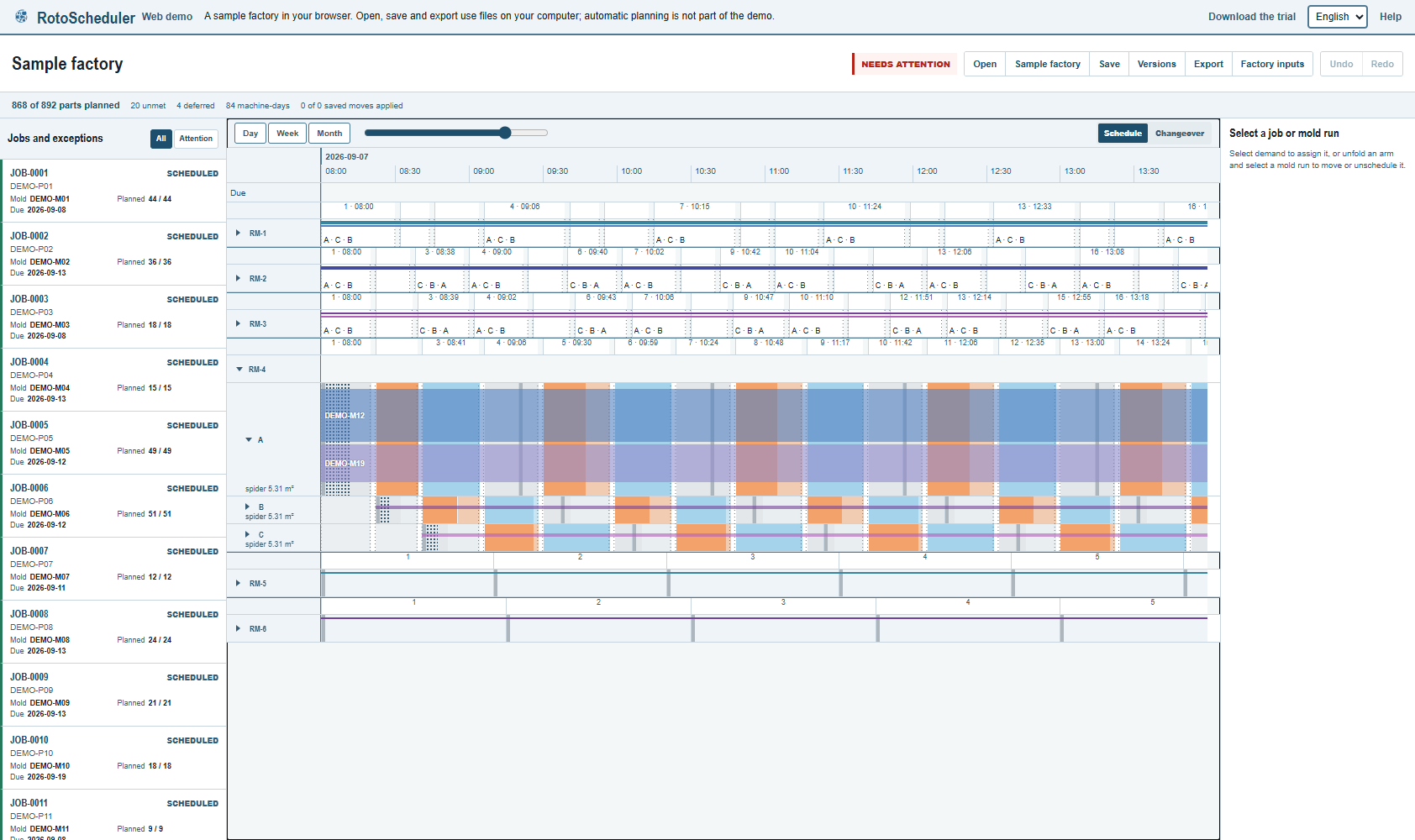

DesktopAdjust layouts, maintain factory data, and save workbooks. MCPLet an assistant call RotoSpider for the physical fit decision. WebAPIConnect mold-layout checks to other software. RotoSchedulerPlan factory production with RotoSpider checking each proposed mold layout.

Factory-specific geometry, scheduling, or integration questions? Contact the representative for your region.
